Your Professional Wafer Handling Systems Supplier
Nice-tech is a professional semiconductor equipment provider with a dedicated factory and an experienced technical team. Our operations are supported by multiple production lines equipped with standardized process control and key semiconductor-related equipment to ensure stable quality and delivery. The company is backed by a skilled team of engineers, technicians, and project specialists with solid industry experience, enabling effective coordination between equipment suppliers and end users.
-

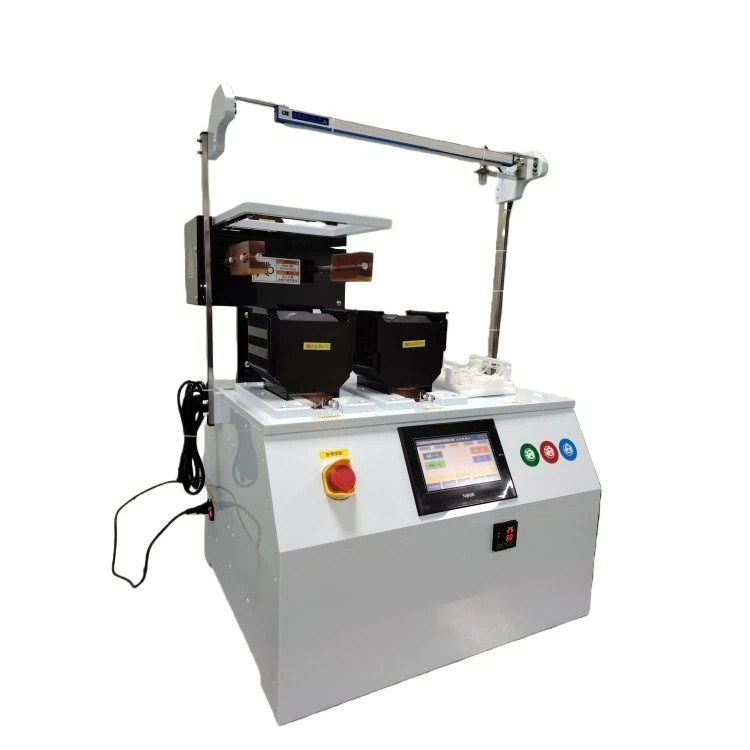

![Wafer Guide Machine]()
Wafer Guide MachineThe Wafer Guide Machine (Automatic Switching Machine) is a high-precision specialty tool — it’s made specifically for 6-inch wafer handling in semiconductor IC production lines. It lets wafers transfer seamlessly between wafer boxes,...view more
why choose us
Tailored Solution Delivery
Our experienced team analyzes clients' specific needs to match the most suitable semiconductor equipment and offer customized solutions for different production and R&D scenarios.
Comprehensive Technical Support
We provide full-cycle technical assistance, from equipment commissioning to maintenance, including on-site troubleshooting and real-time online consultation, reducing operational hassles.
Support for Advanced Processes
We continuously invest in industry insights and adapt to cutting-edge tech trends, offering high-precision equipment solutions and upgrading services to meet high-end chip production needs.
Service Advantages
Offer 1v1 online support for equipment operation, parameter adjustment, and process optimization, responding to your questions promptly.

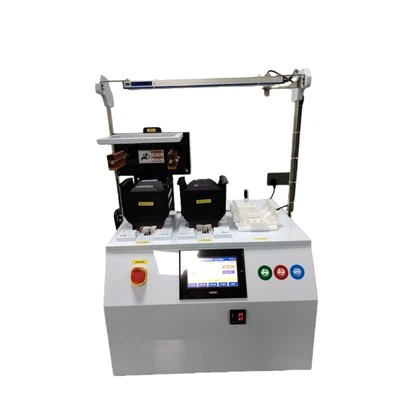

A Wafer Guide Machine (commonly referred to as a wafer handler) is an automated equipment used in semiconductor manufacturing for the efficient and precise handling of wafers. Its core function is to achieve clean, high-speed, and precise transfer of wafers between different process steps through its mechanical structure and control system.
|
Basic Information |
Main Function: Used for 6-inch wafer guiding operation |
|
Equipment Specification: 25 PCS / 50 PCS |
|
|
Size Reference: Approx. W650mm × D550mm × H790mm (subject to final design) |
|
|
Main Structure Features |
Main Body Size: W650mm × D550mm × H790mm (subject to final design) |
|
Appearance Material: Main body is made of W-PP 10t plates through assembly welding |
|
|
Equipment Frame: SUS 90×40×2T frame assembly, with solid structure |
|
|
Piping System: One Chamber modular design |
|
|
Static Elimination: Adopting vertical downward fan cover static elimination method |
Features of Wafer Guide Machine
High-Precision Positioning
Nanometer-level displacement control ensures precise alignment of wafers during processing, guaranteeing the repeatability of processes such as photolithography and etching. For example, in extreme ultraviolet lithography machines, the guide rail system achieves sub-nanometer synchronous movement between the wafer stage and the photomask.
Dynamic Stability
Maintaining micrometer-level deformation control in vacuum/clean environments ensures process consistency.
For example: Multi-zone temperature-controlled guide rails ensure the uniformity of processes such as MOCVD.
Efficient Handling and Clean Transfer
Transfer efficiency: Wafer transfer speed exceeds 300 wafers per hour, significantly higher than the 260 wafers per hour achieved by domestically produced equipment.
Cleanliness: Negative ion generators produce a large amount of airflow with positive and negative charges, neutralizing surface charges on objects in the wafer inspection area and reducing particle contamination.
Type of Wafer Guide Machine
Wafer Dicing Saw (Die Singulation)
Cuts processed wafers into individual dies using diamond blades or laser systems.High precision; compatible with brittle materials; blade-based models offer lower upfront cost 4.
Laser Dicing Systems
Uses pulsed lasers to ablate or modify material along cut lines without mechanical contact.No tool wear; narrower kerf width; suitable for ultra-thin wafers (<50µm).
Wafer Grinding & Polishing Machines
Reduces wafer thickness and improves surface flatness post-processing.Enables 3D packaging and stacking; enhances thermal performance.
Wafer Mounting & De-Mounting Units
Secures wafers onto adhesive tapes or films before dicing and removes them afterward.Prevents cracking during cutting; supports backside processing.
Technical Principles of Wafer Guide Machine
The wafer handling system utilizes high-precision linear motors or rotary platforms to achieve precise positioning of wafers in two or three dimensions.
Linear Motor Drive: The wafer transfer arm can reach speeds of several meters per second and stop precisely at designated positions, achieving a transfer speed of over 300 wafers per hour (international advanced level).
Dual-Arm Collaborative Design: Eliminates the wafer flipping process, further improving efficiency.
Some equipment integrates CCD rapid positioning functionality, adjusting the wafer position in real-time through coaxial or off-axis monitoring to avoid damage caused by mechanical contact.
Edge Calibrator: Calibrates the edges while inspecting the wafer surface, ensuring accuracy in subsequent processes.
High-end equipment (such as Honghu Semiconductor's vacuum transfer platform) utilizes AI technology to achieve nano-level vibration suppression and high-precision positioning error compensation, significantly reducing the risk of scratching, particle contamination, and overlay accuracy errors during wafer transfer.
Operating Procedures: Safety and Efficiency of Wafer Guide Machine
Wafer Transfer Safety
Robot Arm Operation: If the vacuum suction cup has insufficient suction, the vacuum system must be checked to prevent wafer drops. Any impurities or damage on the suction cup surface must be cleaned or replaced promptly.
Transfer Track Maintenance: Regularly lubricate the tracks (e.g., using synthetic lubricant) to reduce friction; if track wear or deformation is found, it must be repaired or replaced immediately to prevent wafer jamming or misalignment.
Electrical System Inspection
Check power connections, control lines, and sensor status monthly to ensure that terminal connections are not loose.
Calibrate temperature sensors every six months and establish an electronic record system to track equipment status changes.
Emergency Shutdown Procedures
If wafer transfer abnormalities (such as blockage or collision) are detected, the system must be shut down immediately and the cause investigated. For example, in one case, wafer fragments caused a blockage due to foreign objects on the track; the system was restored to operation after removing the foreign objects with compressed air.
Maintenance and Upkeep
Regular Lubrication and Cleaning
Moving parts such as guide rails and rollers require regular lubrication (oil-based lubricants are suitable for high-speed applications), avoiding excessive lubrication which can attract dust.
Use ultrasonic cleaners to clean precision components, and thermal imaging technology to detect overheating issues.
Component Replacement and Upgrades
Worn parts (such as rollers and suction cups) should be replaced according to their lifespan to prevent a decrease in accuracy.
Upgrade the calibration system, using AI vision detection to identify surface scratches, cracks, and other defects, achieving a recognition rate of 99.9%.
Spare Parts Inventory Management
Establish a spare parts inventory management system to ensure sufficient stock of commonly used spare parts (such as track rollers and seals). Regularly inventory and replenish shortages to shorten fault repair time.
FAQ
As one of the most professional wafer handling systems manufacturers and suppliers in China, we're featured by quality products and good price. Please rest assured to buy customized wafer handling systems from our factory. For quotation and pricelist, contact us now.
